Device Input

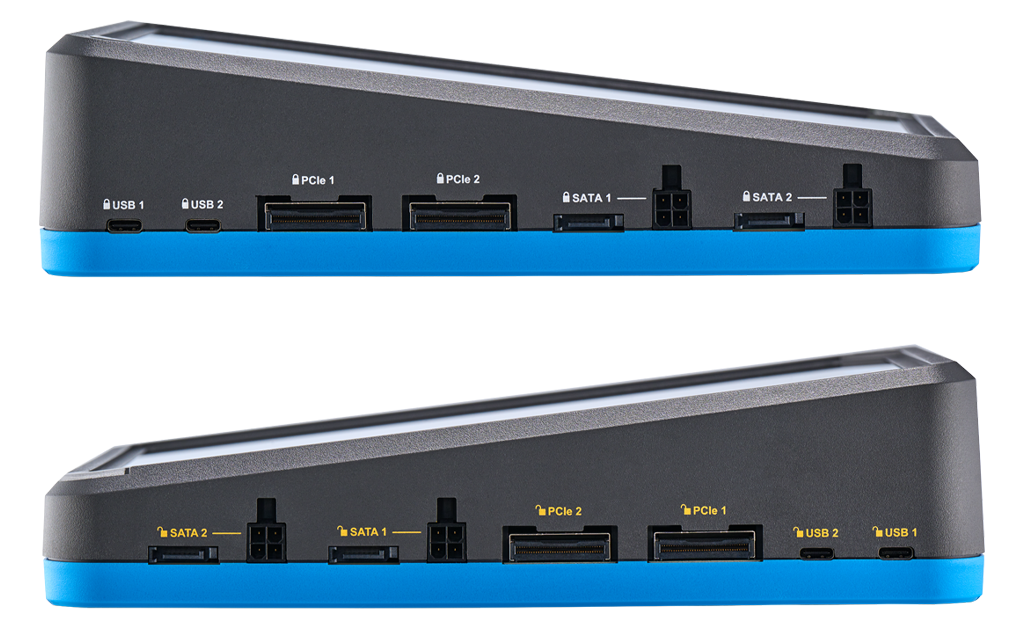

SATA III (2)
USB3.2 Gen2 Type-C (2)
PCIe Gen3 x4 (2)
iSCSI and CIFS (network shares)
SATA/SAS (1)
USB3 (1)
USB3.2 Gen1 Type-C (1)
PCIe (1)
SATA/SAS (2)
USB3 (1)
FireWire (1)
PCIe Gen2 (1)
iSCSI and CIFS (network shares)
IDE (with PCIe adapter)
Device Output
SATA III (2)
USB3.2 Gen2 Type-C (2)
PCIe Gen3 x4 (2)
iSCSI and CIFS (network shares)
SATA (2)
USB3.2 Gen2 Type-C (2)
PCIe (1)
SATA/SAS (2)
USB3 (1)
iSCSI and CIFS (network shares)
SATA (2, with TX1-S1 module)
Networking
RJ45 10 Gb/s (2)
RJ45 10 Gb/s (1)
Imaging Modes
(input:output)
1 : 1
1 : 2
1 : 3
1 : 4
direct-to-network
direct-from-network
parallel imaging (with no predefined limit of simultaneous jobs)
sequential imaging
logical (file system) imaging
mobile backup acquisition
Single Drive Imaging
Up to Five (5) Output Devices
logical (file system) imaging
1 : 1
1 : 2
1 : 3
2 : 2
direct-to-network
direct-from-network
parallel imaging
sequential imaging
logical (file system) imaging
Output File Types
Raw/DD
.E01
.EX01
.LX01
.DMG
Raw/DD
.E01
.EX01
.LX01
.DMG
Raw/DD
.E01
.EX01
.LX01
.DMG
Output File System
exFAT
NTFS
EXT4
FAT
HFS+
exFAT
NTFS
EXT4
FAT32
HFS+
exFAT
NTFS
EXT4
FAT32
HFS+
Key Functions
Mobile Backup Acquisition
PCIe HotSwap Support
Sequential and Tree Hashing
Gallery View (image file types)
Automated Resource Assessment (multiple jobs)
Multi-factor authentication via YubiKey devices
NVMe Namespace Detection and Acquisition
NVMe Detached Namespace Attachment
Dual Network/Cloud-Based Acquisition
Stealth Mode (disable feedback, limit LCD brightness)
Forensic Clone
Forensic Image
Logical Image
Parallel Image and Clone
Concurrent Imaging
Job Queueing
User Admin
Format
Wipe (NIST 800-88 r1 compliant)
Blank Check
Hash (MD5, SHA1, SHA256)
Encryption Management
HPA/DCO/AMA (Detect, Shelve, or Remove)
Automated Acquisition (Image or Clone)
Pause and Resume Imaging
On-Screen Review of Image and Text Files
Display Detailed Disk Info
Display Disk Content Breakdown
Log Files (View, Filter, Save, Print, Delete)
Verify
Access, Preview, and Collect Network Shares
Browse Filesystem
Remote Access via Internet
Job Summary
Display S.M.A.R.T. Data
Lock system and/or features via PIN
Restore Drive (from TX2 Image)
Forensic Clone
Forensic Image
Parallel Image and Clone
Single Job Imaging
Lock Features via PIN
Format
Wipe
Blank Check
Hash (MD5, SHA1, SHA256)
Destination (output) Encryption
Detect Source Encryption
HPA/DCO/AMA (Detect, Shelve, or Remove)
Display Detailed Disk Info
Display Disk Content (Top Level)
Log Files (View, Save, Print, Delete)
Verify
Browse Filesystem
Job Summary
Lock System via PIN
Restore Drive (from TD4 image)
Forensic Clone
Forensic Image
Logical Image
Parallel Image and Clone
Concurrent Imaging
Job Queueing
User Admin
Format
Wipe
Blank Check
Hash (MD5, SHA1, SHA256)
Encryption Management
HPA/DCO/AMA (Detect, Shelve, or Remove)
Automated Acquisition (Image or Clone)
Pause and Resume Imaging
On-Screen Review of Image and Text Files
Display Detailed Disk Info
Display Disk Content Breakdown
Log Files (View, Save, Print, Delete)
Verify
Access, Preview, and Collect Network Shares
Browse Filesystem
Remote Access via Internet
Job Summary
Display S.M.A.R.T. Data
Lock System via PIN
Restore Drive (from TX1 image)
User Interface
8" color touchscreen (800 x 1280) with status & device info
Soft keyboard for data entry and select
4.95" color touchscreen (480 x 854) with status & device info
Soft keyboard for data entry and select
7" color touchscreen (600 x 1024) with status & device info
Soft keyboard for data entry and select
Job Feedback
Status Chimes
Activity LED
Status Chimes
Activity LED
Status Chimes
Activity LED
Status LEDs
ON/OFF
DC Power
Network Status
ON/OFF
DC Power
ON/OFF
DC Power
Network Status
Network Preview / Collect
Access TX2 remotely via Internet as iSCSI target
Review/acquire source connected media
Review/capture of data or files on source connected media
Access TX1 remotely via Internet as iSCSI target
Review/acquire source connected media
Review/capture of data or files on source connected media
Adapters
optional TX2-S1 SATA Drive Bay
optional SATA LIF
optional microSATA
optional SATA Blade SSD
optional SATA to M.2/mSATA SSD
optional PCIe SSD card
optional PCIe M.2 SSD
optional PCIe Apple (2013-2016) SSD
optional PCIe Apple (2016+) SSD
optional PCIe IDE
optional PCIe FireWire
optional SATA Drive Bay
optional SATA LIF
optional microSATA
optional SATA Blade SSD
optional SATA to M.2/mSATA SSD
optional PCIe SSD Card
optional PCIe M.2 SSD
optional PCIe Apple (2013-2016) SSD
optional PCIe Apple (2016+) SSD
optional PCIe U.2 SSD
optional PCIe IDE
optional PCIe FireWire
included TX1-S1 SATA Drive Bay
optional SATA LIF
optional microSATA
optional SATA Blade SSD
optional SATA to M.2/mSATA SSD
optional PCIe SSD Card
optional PCIe M.2 SSD
optional PCIe Apple (2013-2016) SSD
optional PCIe Apple (2016+) SSD
optional PCIe U.2 SSD
optional PCIe IDE
optional PCIe FireWire
PCIe Gen2-to-Gen2 Adapater
Required for use with PCIe Gen3+ adapters
Required for use with PCIe Gen3+ adapters
Cables
Unified SAS/SATA power and signal (4)
PCIe Gen3+ x4 adapter cable (2)
USB3.2 Type A to Type-C (2)
Unified SAS/SATA power and signal (3)
PCIe adapter cable
USB3.2 Type-A to Type-C (2)
USB3.0 (Accessory) Type-C
Unified SAS/SATA power and signal (2)
PCIe adapter cable
USB3.1 (Accessory) Type-A
Documentation
Quickstart Guide
User Manual available online
Quickstart Guide
User Manual available online
Quickstart Guide
User Manual available online
Power Supply
Tableau TP8
Tableau TP6
Tableau TP6
USB Keyboard Support
Yes (keyboard not included)
Yes (keyboard not included)
Yes (keyboard not included)
Output Encryption
Whole disk destination drive
XTS-AES encryption with user-supplied password
Whole disk destination drive
XTS-AES encryption with user-supplied password
Source / Destination Encryption
Detects/unlocks Tableau encryption
Detects/unlocks BitLocker, Opal, APFS (source only) encryption with passkey
Detects OPAL encryption
Detects/unlocks Tableau encrypted source or destination
Detects/unlocks APFS, BitLocker, Opal encryption with passkey
Dimensions and Weight
9.5" (L) x 6.5" (W) x 2.6" (H), 44oz
6.8" (L) x 4.6" (W) x 1.8" (H), 16oz
9.5" (L) x 6.5" (W) x 2.6" (H), 35oz
Miscellaneous Information

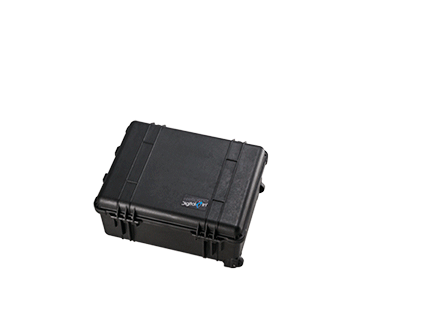

TX2 may be purchased separately or bundled in TX2 UltraKit
TD4 may be purchased separately or bundled in TD4 UltraKit
TX1 may be purchased separately or bundled in TX1 UltraKit
